Teilenummer:
nas9301b-6-05
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

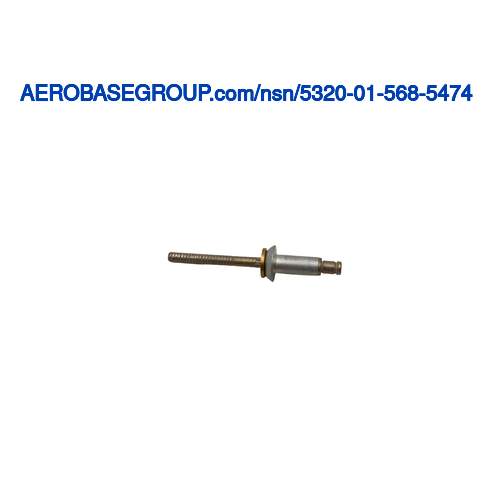

Blind Rivet
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
0.450 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Universal
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.080 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.188 inches and 0.191 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Self-plugging mechanically locked stem
Head Major Diameter:
0.375 inches
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.251 inches and 0.312 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 5056 sleeve
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660 locking ring or steel comp 304 locking ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 8740 stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 6322 assn standard single material response stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5731 assn standard single material response locking ring or ams 5639 assn standard single material response locking ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-a-430 federal specification single material response sleeve
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromate sleeve
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium stem
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate locking ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Ams 2700 assn standard single treatment response locking ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Ams-qq-p-416, ty ii, cl 2 assn standard single treatment response stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Mil-c-5541 military specification single treatment response sleeve
