Teilenummer:
ta155-s4-10d
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

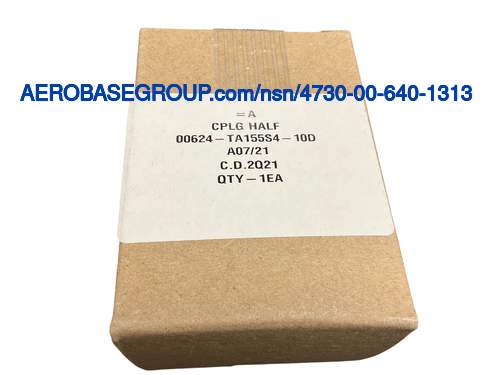

Quick Disconnect Coupling Half
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a all ends
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
3.100 inches
MRC:
The means by which mechanical action completely engages or disengages a mating quick disconnect part.ADLN
Quick Disconnect Method:
Quick lead thread all ends
MRC:
The number of bolt holes provided on the item.AECS
Bolt Hole Quantity:
6
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
C-135 and h-3 aircraft
MRC:
The style designation indicating the configuration that most nearly corresponds to the basic appearance of the item.AGTA
Basic Shape Style:
3 round first quick disconnect end
MRC:
The style designation indicating the configuration that most nearly corresponds to the basic appearance of the item.AGTA
Basic Shape Style:
Round first quick disconnect end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flared all ends
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube first fluid end connection
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Self-sealing
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.875 inches all ends
MRC:
Indicates the location of the mounting flange on the item.CQKS
Mounting Flange Location:
First leg
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees
MRC:
The nominal length of a straight line which passes through the center of an item,and terminates at the outside circumference.CWCD
Outside Diameter:
2.500 inches
MRC:
The nominal length of a straight line which passes through the center of the bolt hole,and terminates at the circumference.CWCQ
Bolt Hole Diameter:
0.201 inches
MRC:
The nominal length of a straight line which passes through the center of the bolt circle,and terminates at the circumference.CWCT
Bolt Circle Diameter:
2.125 inches
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.625 inches all ends
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy body
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize body
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Male coupling half
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf all ends
