Nationale Bestandsnummer:
TXT
Beschreibung:

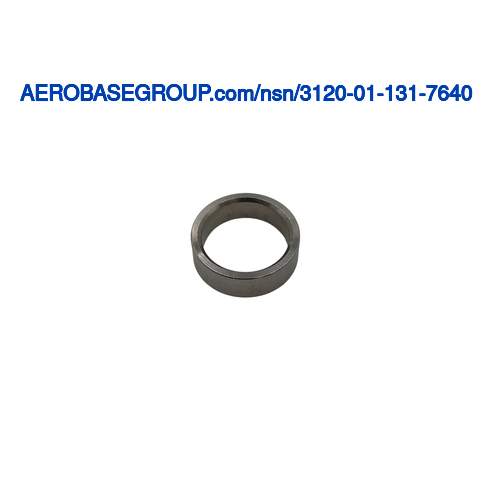

Sleeve Bushing
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 0.3075 inches and 0.3125 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 1.0023 inches and 1.0033 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.8060 inches and 0.8075 inches
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered inside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered inside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside right corner
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 630
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams5643, cond h1025 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
17c solid, plain, no outside flanges
