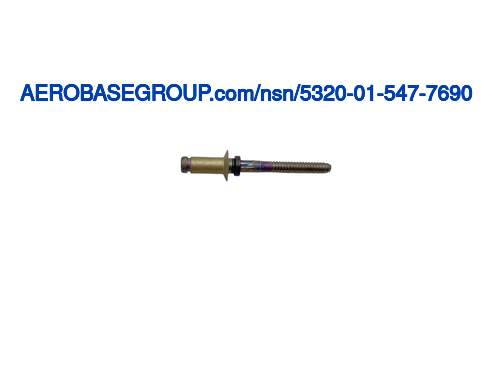

Teilenummer UB130-MV-05-02

Blind Rivet

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 11.68 and 15.768 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
ub130-mv-05-02
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
015477690

Informationen zum Teil
Inavy: rivet, blind; cage 0hdw7: 130 degree flush shear head - all titanium ub130-mv- blind bolt (ti-matic)

NSN
Nationale Bestandsnummer:
5320-01-547-7690 5320015477690
TXT
Beschreibung:
Blind Rivet
INC
INC
Artikelname-Code:
00864
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
0.336 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.162 inches and 0.164 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Self-plugging mechanically locked stem
MRC:
None.AAZG
Head Major Diameter:
0.332 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Mv-22 aircraft
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.094 inches and 0.157 inches
MRC:
The maximum rated load in tension applied in a longitudinal direction,per unit of cross-sectional area,that the material can withstand without rupture.CQBC
Min. Tensile Strength (psi):
900 pounds per square inch
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
1825 single pounds per square inch
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
130.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy sleeve
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy stem
